Super Slow Motion Signal Flow with RED Cine-Broadcast System

What is RED Connect?

RED Connect unlocks 8K live cinematic streaming via the groundbreaking RED Connect solution. RED Connect enables users the ability to stream RAW R3D files direct from the V-RAPTOR and V-RAPTOR XL camera systems over IP to a camera control unit (CCU) in real-time, opening an extraordinary range of creative applications, including:

• Live broadcast with unmatched image quality
• Virtual production for real-time VFX workflows
• 8K VR streaming for immersive experiences

For super slow-motion applications, RED Connect enables the transmission of high-speed R3D frame rates (e.g., 3x and 4x slow motion) while simultaneously providing a standard live feed via the camera’s SDI output.

The Function of the RED Connect CCU

The RED Connect CCU is responsible for processing incoming high-frame-rate R3D data and outputting synchronized phased SDI feeds via the Blackmagic DeckLink 8K Pro.

Key features of the RED Connect CCU:

• Built using off-the-shelf hardware, allowing clients and system integrators to scale the solution as needed
• Runs a lightweight background service that processes incoming R3D frames in real time
• Supports both Windows and Linux operating systems

Components Needed

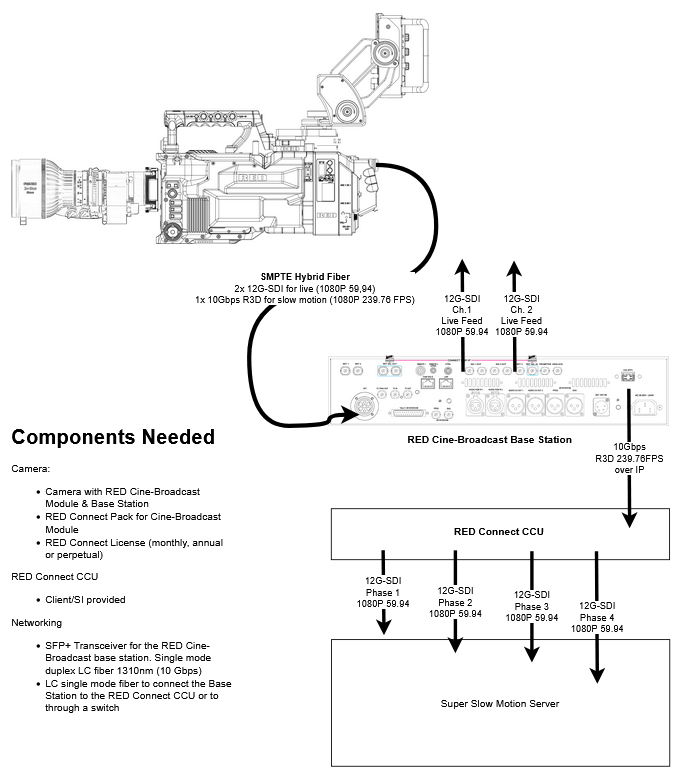

Camera:

• Camera with RED Cine-Broadcast Module & Base Station
• RED Connect Pack for Cine-Broadcast Module
• RED Connect License (monthly, annual or perpetual)

RED Connect CCU (Client / SI Provided)

• High Speed Network Interface Card (NIC)
• NVIDIA GPU (L40S or 6000 Ada recommended)
• Blackmagic DeckLink 8K Pro

Networking

• SFP+ Transceiver for the RED Cine-Broadcast Base Station (Single-mode duplex LC fiber, 1310nm, 10 Gbps)
• LC Single-Mode Fiber to connect the Base Station to the RED Connect CCU, either directly or via a switch

The RED Connect License

A RED Connect license is required to enable live R3D streaming over a 10 Gbps IP connection. Licenses are available in monthly, annual, and perpetual options.

For pricing or other general inquiries, please contact us here: Learn more about Broadcast Solutions
