PL Adapters w/ Electronic ND - Lens Compatibility

The RED Z to PL Adapter w/ Electronic ND Filter and RF to PL Adapter w/Electronic ND Filter support PL lenses with Cooke /i Technology in addition to providing power and record triggering with compatible lenses.

While the vast majority of PL lenses are compatible with the PL Adapters w/ Electronic ND Filter, a small selection of PL lenses are not compatible due to their rear protrusion depth.

Caution should be taken with lenses that have extreme protrusion rear elements.

• Maximum Protrusion Depth with Straight 45.60 mm Diameter: 21.60 mm
• Maximum Protrusion Depth with Straight 54 mm Diameter: 20.40 mm  

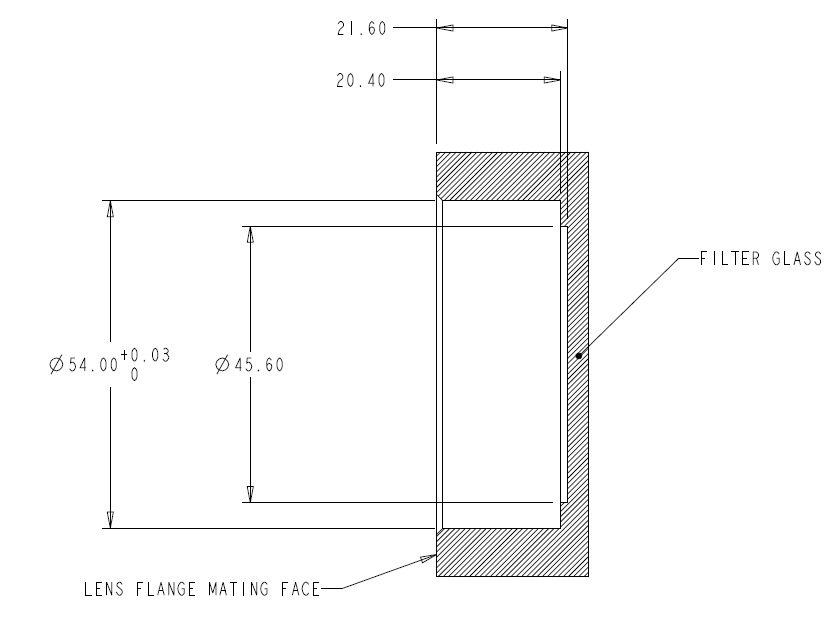

The maximum envelope of a lens that will fit into the PL Adapter w/Electronic ND Filter is 54.00 mm to a depth of 20.40 mm, or 45.60 mm to a depth of 21.60 mm as shown in the diagram below.

To check suspect lenses:

• Remove the Adapter from the camera and attach it to the lens without a filter inserted.
• If the lens does not protrude into the filter tray cavity, it will attach to the Adapter with filter inserted without collision. 
• If further verification is required, before re-attaching the Adapter to the camera, CAREFULLY slide the Clear Filter into the filter tray cavity while looking through the rear opening of the Adapter.  Watch to be sure that the filter does not touch your lens as the filter slides past your lens.
• RED offers a 3D printable DSMC3 Lens Fitment Tool, available here.

WARNING: Use of a lens that extends beyond these dimensions may damage the PL Adapter w/ Electronic ND’s Filters or your lens.

Safety

• Should the variable ND filter become damaged and the skin exposed to the liquid crystal material, immediately remove material using soap and water. 
• Should the liquid crystal material come in contact with the eye, immediately flush using running water for at least five minutes. Seek medical advice.
